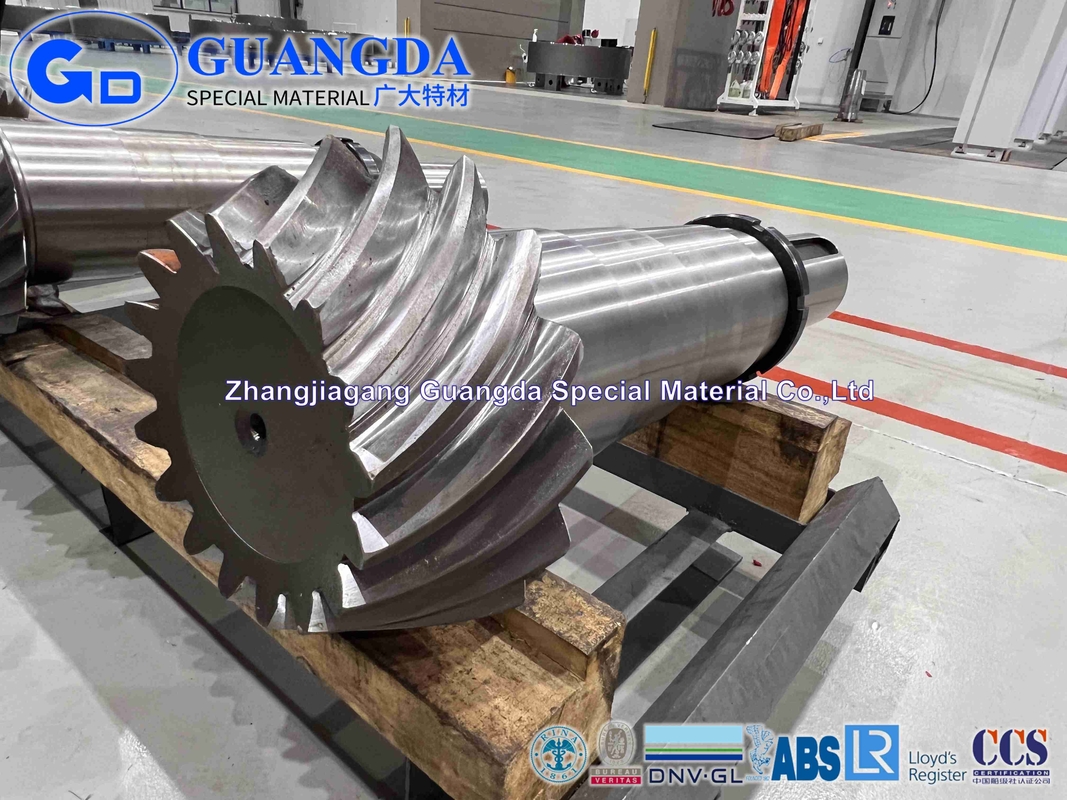

Precision Gear Pinion Shaft Customized Spline Gear Shaft

Gear And Shaft Spline Gear Shaft Gear Pinion Shaft Customized Gear Shaft

There are a number of different shafts in a gearbox – sun shaft, planetary shaft, hollow shaft, plus low and high speed shaft. What they all have in common is that they are steel components with high strength and hardness.

Gear shaft is a mechanical part that supports rotating parts and rotates with them to transmit motion, torque, or bending moment. It is generally in the shape of metal rods, and each segment can have different diameters. The rotating parts of the machine are mounted on the shaft.

Drive shaft gear specification we could provide

Precision gears types



	Planetary Gear Planetary gears, also called epicyclic gear trains, are used in complex applications that require smooth torque transmission, such as drivetrains and automotive transmissions. The spur gear used by planetary gears is called a “sun spur,” which is surrounded by three-plus exterior gears called planet gears
	Internal Gear Planetary gears, also called epicyclic gear trains, are used in complex applications that require smooth torque transmission, such as drivetrains and automotive transmissions. The spur gear used by planetary gears is called a “sun spur,” which is surrounded by three-plus exterior gears called planet gears
	Spur Gear The spur gear, also called a straight-cut gear, is the simplest type of gear available. Straight-sided along the gear wheel’s axis, with straight teeth in line with the axis. Other types of spur gears transmit motion and torque laterally through compatibility with other parallel aligned gears. Such gears are main components in planetary gears.
	Sun shaft Gear Sun shaft gears are either cylindrical or rod-shaped with straight teeth that allow them to transmit motion laterally by fitting inside internal devices or gears.
	Helical Gear Helical gears are fast rotating gears capable of supporting heavy loads efficiently and smoothly. They feature teeth inclined towards the axis of the shaft and positioned like a helix, thus the name. Quieter than many other gears, including spur gears, helical gears are popular with applications that feature both radial loads and thrust loads.
	Double helical gear Double helical gears are a type of helical gear that has two helical faces next to each other with a gap between them. The helix angles on each face are identical but opposing. The use of a twin helical gear set lowers thrust loads and allows for even more tooth overlap and smoother operation.





Drive shaft gear applications

About Guangda

Guangda is one of the leading gear manufacturers in China .We make various sizes of gears for different applications acoss multiple platforms . we have the experience and resources necessary to meet the demands of your business. You can count on our engineers and quality control teams to make the high-quality, custom gears you need.

We’re committed to exceeding your gear manufacturing technology needs from start to finish. Whether your project requires services such as full design, prototyping, pre-production and production of gears, Gear Motions has the expertise to handle every step of the gear manufacturing process to meet your needs.

All products are manufactured with the most advanced and modern equipment of PAMA,Gleason,Danobat,Kehren,Nicolas,Pierto carnaghi and efficient technical team with an emphasis on cost effective production.Guangda pursues excellence & innovation with tight quality control & the most advanced technology in the industry.

Guangda has deep and long cooperation with NGC ,Voith ,Flender and ZF for supplying the gear box parts . In Chinese market, Guangda wind turbine gear steel ranks first in China for the capacity, quality and market share .And Guangda is the largest supplier to the world's top three customers NGC,ZF and Siemens for the gear box parts.
